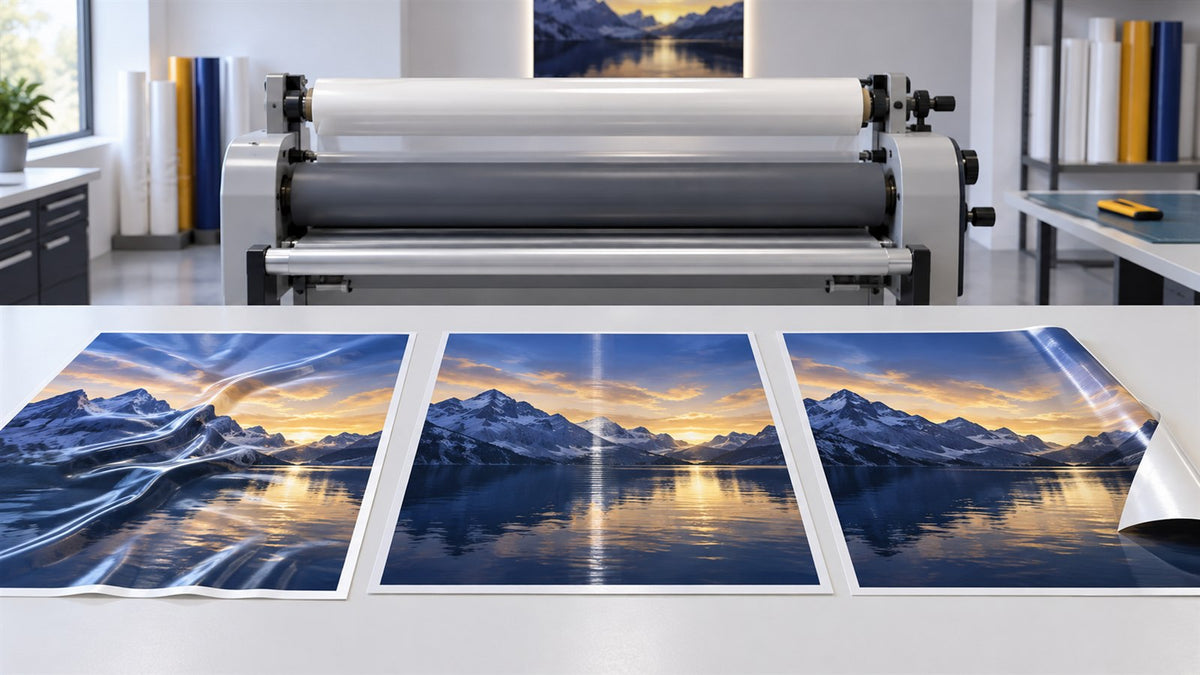

Wrinkles, tunnels, curl, and lifted laminate edges are related to stress inside a laminated construction, but they are not the same defect. The location and direction of the failure often reveal whether it began at the laminator, during winding and storage, after contour cutting, or in final service.
Do not respond by adding more pressure or tension until the pattern has been documented.
Define the defect
Wrinkle
A permanent fold or crease in the laminate, base film, or both. It may enter the nip from poor loading or form because the webs are not tracking at the same rate.
Tunnel
A long raised channel where one layer or release liner separates from another. Cross-web tunnels frequently indicate unequal tension, winding stress, or liner behavior.
Curl
The finished construction no longer lies flat. Curl can indicate that the laminate was stretched, the base film changed dimensions, the two layers have unequal tension, or the sheet was wound improperly.
Edge lift or delamination
The overlaminate separates from the printed film at an edge or cut line. Causes may include contamination, incompatible materials, insufficient contact, retained solvent, mechanical stress, or exposure outside the supported system.
Read the failure pattern
- Diagonal wrinkles: check whether rolls and sheets entered out of square.
- Repeating bands: inspect rollers for contamination, damage or uneven pressure.
- Cross-web tunnels after winding: investigate laminate tension, liner construction and roll diameter.
- Curl immediately after the nip: suspect stretched overlaminate or unequal web tension.
- Lift only along contour cuts: check drying, laminate bond, cutting depth, blade drag and edge stress.
- Lift after installation: evaluate matched construction, stretching, surface geometry, heat and exposure.
- Failure limited to one printed color: investigate ink coverage, curing and laminate-to-ink compatibility.
Photograph the defect before flattening or rewinding it. Handling can erase useful evidence.
Excess laminate tension
Arlon advises using only as much unwind tension and nip pressure as necessary to create a flat, bubble- and wrinkle-free construction. Clear overlaminate can stretch significantly without obviously overloading the machine. When it relaxes, it pulls against the printed film.
Increasing brake tension to correct tracking is especially risky. Tracking should be corrected through square loading, roll alignment and machine condition.
Uneven pressure and alignment
If the nip is not parallel, one side travels under different pressure and effective path length. A sheet trimmed out of square can also walk across the machine.
Check:
- roll shafts and media position;
- parallel roller gap;
- roller cleanliness and damage;
- whether the print edge is square;
- whether the laminate contacts the print only at the nip;
- whether both webs remain flat before bonding.
Run a short setup section and observe both edges before committing a long roll.
Winding and storage
Finishing does not end at the laminator. Tight winding, small core diameter, incorrect winding direction, heat, humidity, unsupported rolls, and long storage can introduce roll set or cause liners to tunnel.
Arlon recommends loose winding around a sufficiently large diameter with the linered side inward for the systems discussed in its technical tip. Treat this as product-specific guidance and confirm the instructions for your construction.
Paper liners absorb moisture and can expand or contract differently from film. Store finished graphics in a stable, dry environment and support rolled work with an appropriate core.
Material compatibility
Base film and overlaminate should have compatible physical behavior, adhesive chemistry, conformability and intended durability. A rigid laminate can fight a flexible base film; layers with different shrinkage or thermal movement can concentrate stress at edges and channels.
Compatibility cannot be established from thickness or finish alone. Use manufacturer-approved combinations or conduct documented qualification testing without representing the result as a manufacturer warranty.
Ink drying and curing
Retained solvent can soften or change the printed construction after lamination. UV ink texture can reduce initial adhesive contact. Latex/resin and other systems have their own curing and overcoat considerations.
Record the exact ink technology, profile, completion time and finishing time. Do not diagnose a mechanical-looking defect without checking whether the print was ready to laminate.
Recovery or remake?
Stop the machine as soon as a wrinkle enters the nip. Once folded material is bonded, separating it usually damages the print or adhesive.
Mild roll set may relax under approved conditions, but a tunnel created by stretched film, incompatible materials or liner separation can return. Edge lift caused by continuing stress should not be hidden with aggressive glue without identifying the mechanism.
Remake the graphic when structural stress, contamination, a permanent crease, widespread delamination, or the wrong material pairing makes future performance uncertain.
Controlled test sequence
- Record defect direction and location.
- Preserve material and lot samples.
- Verify print drying or curing.
- Clean and square the machine.
- Reduce tension to the minimum stable level.
- Establish even pressure using the laminator procedure.
- Run a short test at controlled speed.
- Store one sample flat and one using the proposed winding method.
- Inspect immediately and after the intended storage period.
For setup fundamentals, see the Cold-Roll Lamination Guide. If the main symptom is fine cloudy micro-air rather than deformation, use Why Overlaminate Looks Cloudy or Silvered.
Technical sources
- Arlon Graphics, Lamination: Transfer Tape or Protective Overlaminating Film.
- Arlon Graphics, Digital Printing: Graphic Protection.
- 3M, Production: Lamination, Revision A, December 2024.
- General Formulations, Overlaminates and Coatings.
