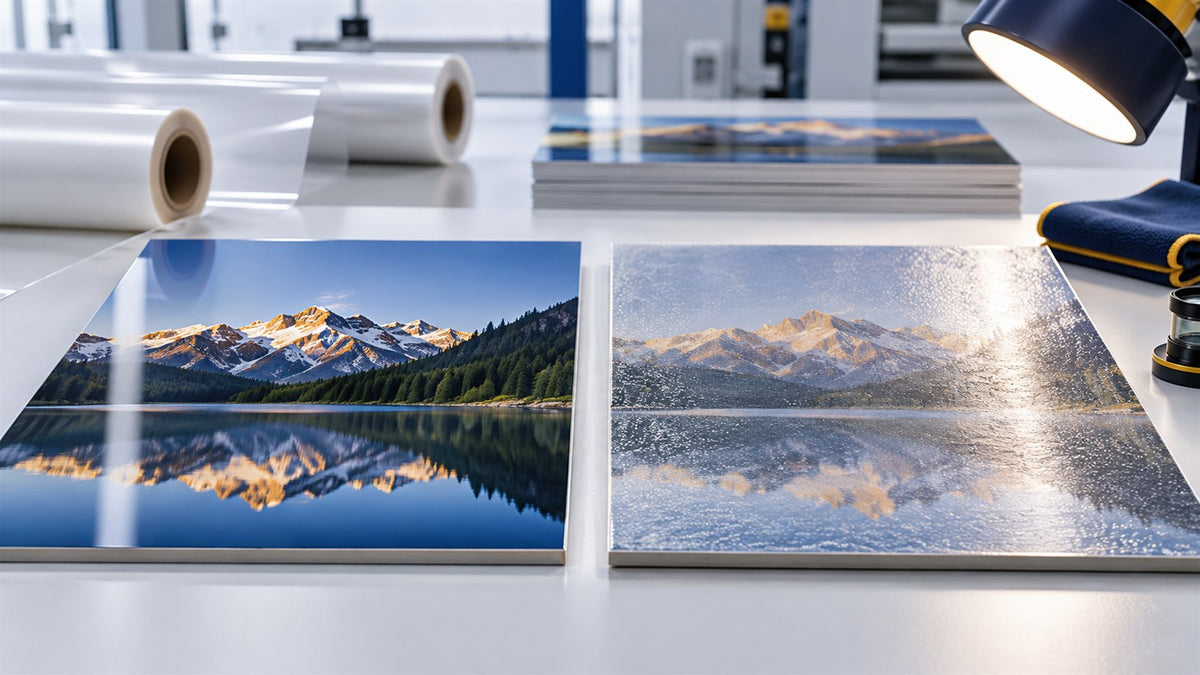

Fine white, sparkling, or cloudy areas beneath a clear overlaminate are commonly called silvering. The effect is easiest to see over black and other dark colors because microscopic air interfaces scatter light between the laminate adhesive and the printed surface.
Silvering is a symptom of incomplete optical contact. It is not automatically proof of total bond failure, and it should not be confused with moisture, contamination, adhesive whitening, print defects, or large trapped bubbles.
Identify the appearance first
Inspect the graphic under reflected and transmitted light before changing the laminator.
- Fine, evenly distributed sparkle: commonly micro-air at the print/adhesive interface.
- Parallel bands: may correspond to uneven roller pressure, roller damage, or print texture.
- Localized cloudy spots: may indicate contamination, premature contact, a crease, or uneven pressure.
- Large clear-edged pockets: are bubbles rather than classic fine silvering.
- Cloudiness that follows liquid paths: may be retained moisture or cleaner.
- Color or gloss variation in the print itself: may have existed before lamination.
Keep an unlaminated control print. Without it, a printing defect can be incorrectly blamed on the overlaminate.
Why printed texture matters
Overlaminate adhesive must flow into the microscopic topography of the printed surface. High ink coverage, some UV-cured ink textures, coarse media surfaces, and incompatible coatings can leave more air between layers.
General Formulations identifies high ink density and rough printed surfaces as conditions more likely to show silvering. Arlon separately notes that UV-printed graphics can trap air because of surface unevenness.
This does not mean every dark or UV print will silver. It means the exact ink, profile, media, laminate, and process must be qualified together.
Process causes to check
Inadequate or uneven nip contact
Too little pressure or an uneven roller gap may prevent consistent adhesive contact. Check machine calibration, roller cleanliness, roller damage, and whether both sides close evenly.
Do not simply maximize pressure. Excess pressure can stretch the web, distort adhesive, create tracking problems, or cause curl.
Material is too cold
Cold pressure-sensitive adhesive flows less readily into microscopic texture. Condition both print and laminate within their specified production environment. Measure material and room conditions rather than assuming indoor storage is sufficient.
Excessive speed or unstable tension
A fast or unstable web can trap air at the nip. Excess laminate tension may stretch the film and introduce downstream curl or tunneling. Use the minimum stable tension and a controlled speed established by testing.
Print is not ready for finishing
Solvent output that has not completed the required outgassing period may create later dimensional or adhesion problems. Other ink systems must be fully dried or cured under their own specifications.
Mismatched construction
The overlaminate adhesive and physical construction must be appropriate for the print surface and base film. A clear roll is not interchangeable merely because its width and finish look correct.
Will silvering disappear?
Some pressure-sensitive adhesives continue to wet out after lamination, and mild micro-air can become less visible with time and suitable temperature. Arlon states that its relevant systems commonly wet out overnight on solvent- and latex-printed graphics.
That observation is product-specific. Do not promise that every silvered graphic will clear. Severe, patterned, contaminated, incompatible, or mechanically damaged areas may remain visible.
Before shipping, use a qualified inspection time for the actual material system rather than assuming sunlight or heat will repair the result.
A controlled diagnostic test
- Preserve unlaminated and laminated samples.
- Record printer, ink, profile, media, laminate, lots, ink coverage and curing/drying history.
- Verify room and material temperature.
- Clean and inspect the rollers.
- Run a small dark test target across the working width.
- Change only one variable: pressure, speed, temperature if approved, or laminate combination.
- Inspect immediately and again after the documented wet-out period.
- Compare center, edges, light colors, dark solids and unprinted media.
If the pattern repeats in the same cross-web position, investigate machine geometry. If it follows particular colors or print modes, investigate ink load and surface texture.
Prevention checklist
- Use a documented base-film/overlaminate combination.
- Complete required ink drying or curing.
- Condition materials in a clean, controlled environment.
- Keep exposed adhesive and print surfaces free of dust.
- Maintain clean, parallel rollers and even nip pressure.
- Use minimum stable web tension.
- Establish speed with a dark, high-coverage test target.
- Inspect the first section before processing the full roll.
- Define an acceptable wet-out period and final inspection standard.
For the correct machine setup, see Cold-Roll Lamination Guide: Pressure, Tension, Speed and Silvering. For solvent output, first review Why Solvent Prints Need to Outgas Before Lamination.
Technical sources
- General Formulations, Silvering of Overlaminates.
- General Formulations, Overlaminates and Coatings.
- Arlon Graphics, What Is Silvering?.
- 3M, Production: Lamination, Revision A, December 2024.
