Cold-Roll Lamination Guide: Pressure, Tension, Speed and Silvering

September 13, 2026

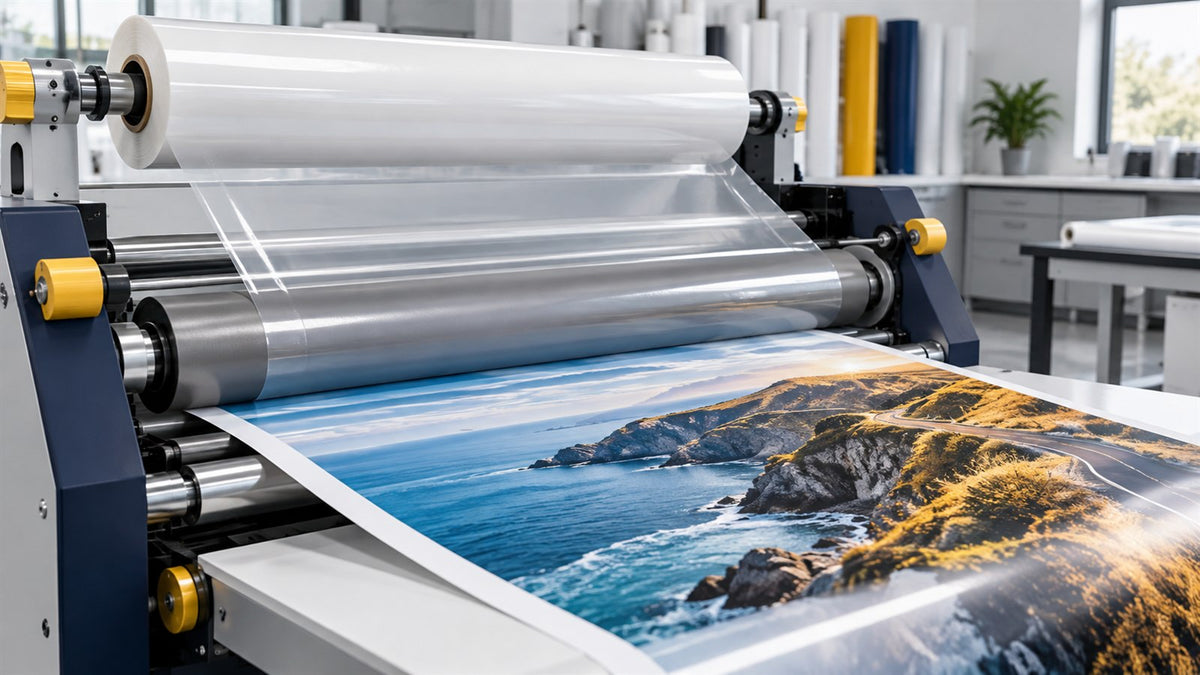

Clear overlaminate feeding smoothly through a professional cold-roll laminator

Cold-roll lamination looks simple: feed a print and overlaminate through a pair of rollers. In practice, the result depends on how evenly the two webs meet at the nip. Pressure, tension, speed, alignment, cleanliness, temperature, and material condition must work together.

A defect is rarely solved by turning one control to its maximum. More pressure can hide one symptom while creating stretch, tracking, or adhesive distortion elsewhere.

What the laminator is doing

A pressure-sensitive overlaminate uses nip pressure to bring its adhesive into uniform contact with the printed surface. The machine must remove the release liner, keep the laminate flat, bring it to the print without trapping air, and transport both materials without stretching either web.

The critical area is the nip—the line where the rollers bring the two materials together. The incoming print and laminate should be flat, aligned, clean, and under controlled tension at this point.

Pressure: enough for contact, not distortion

Insufficient or uneven pressure can leave incomplete contact, visible silvering, or areas that later tunnel. Excessive pressure can stretch a soft film, bow the web, exaggerate tracking errors, or squeeze adhesive unevenly.

Use the equipment manufacturer’s setup method rather than comparing knob positions between machines. Roller condition, gap calibration, material width, and machine construction affect the real pressure delivered.

Check that:

rollers are clean and undamaged;
the gap is even across the width;
both sides close symmetrically;
the print enters flat;
the laminate does not contact the print before the nip.

Tension: control both webs

Brake or unwind tension keeps the laminate web organized, but too much tension stretches it before bonding. Once the stretched laminate relaxes, it can pull against the base film and cause curl, edge lift, tunneling, or roll memory.

Too little tension allows wrinkles, wandering, liner separation problems, or uncontrolled contact ahead of the nip. The goal is the minimum stable tension needed for a flat, controlled web.

Do not pull the printed vinyl by hand to correct tracking while the machine runs. Stop, realign, and correct the mechanical cause.

Speed: slower is not automatically better

Speed affects operator control and the way air exits the nip. Excessive speed gives less time to detect wrinkles, contamination, or tracking drift. Extremely slow operation combined with poor tension can also allow the web to wander or touch prematurely.

Establish a qualified range for each material width and construction. Begin conservatively, observe the nip continuously, and stop immediately when a fold or foreign particle approaches the rollers.

Alignment and web tracking

The print roll, laminate roll, and take-up direction should be square to one another. A small angular error can grow across a long run, producing diagonal wrinkles or exposing one edge of the print.

Before committing the job:

Load the laminate centrally and squarely.
Verify that the printed material has straight, undamaged edges.
Use a short leader or setup section when the machine procedure calls for one.
Feed a short distance and inspect both edges.
Correct alignment before increasing speed.

Cleanliness and environment

Dust, hair, liner debris, and dried adhesive become permanent inclusions once they reach the nip. Clean the machine and surrounding work area, handle film edges carefully, and avoid directing dusty airflow toward exposed adhesive.

Cold materials and a cold room can make pressure-sensitive adhesive less willing to flow into microscopic surface texture, increasing temporary silvering. Heat should not be improvised unless the materials and machine explicitly support it. Condition rolls in the production environment according to supplier guidance.

What silvering means

Silvering is the light, cloudy, or sparkling appearance created by microscopic air between laminate adhesive and the printed surface. It is most visible in dark, solid colors.

Possible contributors include:

insufficient or uneven nip pressure;
cold material;
textured or incompatible print surfaces;
excessive web speed;
contamination;
inadequate print drying or curing;
mismatched laminate and ink/media construction.

Some pressure-sensitive systems develop clarity as the adhesive wets out over time, but do not promise that every cloudy result will disappear. Severe, patterned, or localized silvering can indicate a process or compatibility problem.

A controlled setup checklist

Confirm that the print has completed its required drying or curing period.
Verify base film and laminate compatibility.
Condition both rolls in the work environment.
Clean rollers, table, media surface, and operator hands.
Inspect roll edges and remove damaged leader material.
Set even roller gap or pressure using the machine procedure.
Apply only enough unwind tension for stable tracking.
Run a short test section at a controlled speed.
Inspect dark areas, edges, and the back of the construction.
Record the setup that produced an acceptable result.

Stop rather than laminate through a defect

If a wrinkle, fold, contaminated spot, tracking shift, or liner problem develops, stop the machine. Continuing can convert a small setup loss into an entire damaged roll and can create a roller safety hazard. Never reach into an operating nip.

Key takeaway

Good cold lamination is a balance, not a maximum setting. A clean, square web entering a flat nip with even pressure, minimal stable tension, and controlled speed produces more reliable results than trying to correct every defect with extra force.
