How to Maintain Contour-Cut Accuracy After Lamination

September 13, 2026

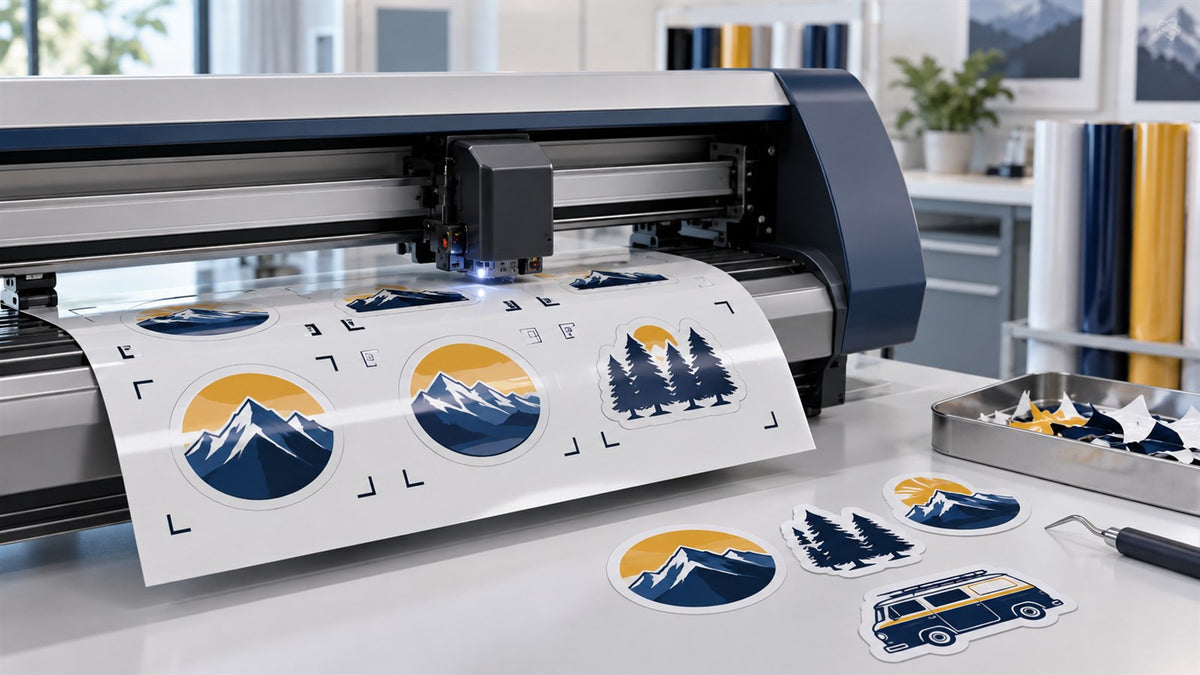

Laminated printed vinyl aligned to registration marks in a contour cutter

In a print–laminate–cut workflow, the printed media leaves the printer, passes through another process, and is then loaded again for contour cutting. Each stage can change its position, dimensions, flatness, or tracking. Accurate cutting therefore depends on controlling the complete workflow—not simply entering a larger cut offset.

Why laminated jobs can shift

Common sources of registration error include:

retained solvent or incomplete curing;
vinyl shrinkage after printing;
excessive laminate tension stretching the construction;
skew during lamination;
damaged, covered, distorted, or poorly printed crop marks;
incorrect loading orientation;
media loaded out of square;
dirty or poorly calibrated optical sensors;
feed calibration or pinch-roller problems;
incorrect blade extension, force, offset, or speed;
long layouts with too few registration references.

The shape of the error provides useful evidence. A constant shift is different from an error that grows along the length or changes from left to right.

Build the file correctly

Contour paths must be vector data recognized by the RIP or cutter workflow. In Roland VersaWorks, for example, the named spot color and workflow settings determine whether a path is treated as a cut line. Other systems use different naming and setup rules.

Provide adequate bleed outside the cut path so a small production tolerance does not reveal an unprinted white edge. Bleed does not correct registration, but it makes appropriate tolerances visually safer.

Keep crop-mark areas inside the machine’s supported printable and sensing zone. Do not place artwork, varnish, tape, or handwritten marks where the optical system expects clean contrast.

Print with the correct registration marks

Select the machine’s print-and-cut alignment marks—not ordinary trim marks. Confirm that the chosen mark type is supported by the device that will perform the final cut.

For long jobs or repeated decals, additional registration references may improve local alignment when the RIP and device support them. Roland documents multiple crop-mark strategies specifically for print–laminate–cut work. Use the current procedure for your RIP and model.

Stabilize the print before lamination

Solvent and eco-solvent output must complete its qualified drying period. Cutting a construction that is still changing dimensions produces an error that calibration cannot reliably remove.

Handle the print so the registration marks remain flat and undamaged. Avoid trimming too close to marks before the job returns to the cutter.

Laminate without stretching or skewing

Excess unwind tension can stretch the laminate or base film. Misalignment can pull the construction diagonally. Use even nip pressure, minimum stable tension, square loading, and controlled speed.

If the finished sheet bows, curls, or tracks diagonally, correct the lamination process before blaming optical registration.

Reload in the documented orientation

Preserve the original leading edge and orientation unless the equipment instructions state otherwise. Load the material squarely, position pinch rollers in supported zones, and provide enough flat media around the crop marks for reliable sensing.

Do not center, rotate, resize, or reposition the cut job differently from the printed layout. Roland’s documented print–laminate–cut procedure specifically warns against settings that alter the relationship between the job and its crop marks.

Check sensing and calibration

Before adjusting artwork:

Clean the optical sensor area according to the equipment manual.
Confirm crop marks are dark, complete, uncovered, and not distorted.
Run the printer’s print/cut or crop-mark calibration procedure.
Verify media-feed calibration and pinch-roller condition.
Test a small standard target.

Calibration should be performed with the relevant media construction when the manufacturer requires it. A thick laminated construction may behave differently from an unlaminated calibration sheet.

Separate registration from cutting mechanics

A cut can appear misregistered when the real problem is blade drag or media movement. Too much blade extension, excessive force, a worn holder, incorrect offset, or high speed can pull small shapes away from the intended path.

Use a test cut to establish the minimum force that cleanly cuts the face film and laminate without deeply scoring the liner. Inspect circles, corners, small text, and repeated shapes separately.

Diagnose the error pattern

Uniform shift everywhere

Check print/cut calibration, job orientation, scaling, RIP settings, and whether the correct cut file was used.

Error grows along the media length

Check media-feed calibration, dimensional change, laminate tension, long-job tracking, and the number or placement of registration references.

One side is accurate and the other is shifted

Check skewed loading, diagonal lamination, uneven pinch-roller pressure, and whether the sheet is square.

Small shapes are worse than large shapes

Check blade extension, force, speed, offset, holder condition, and material movement.

Crop marks cannot be read

Check contrast, glare, laminate over the marks, contamination, wrinkles, sensor cleanliness, and the device-specific mark layout.

Qualification test

Create a standard sheet containing crop marks, rectangles, circles, small text, and repeated decals across the full working width and intended length. Measure registration at the front, center, rear, left, and right. Record the printer, profile, drying time, laminate, laminator setup, loading method, calibration, blade, force, speed, and results.

Change only one variable per test. An undocumented sequence of offset adjustments may improve one location while making the rest of the sheet worse.

Key takeaway

Contour-cut accuracy after lamination is the result of dimensional stability, square material handling, readable registration marks, correct reloading, calibrated sensing, and controlled blade mechanics. Diagnose the error pattern before changing offsets.
