Why Contour Cuts Shift or Become Misaligned

September 13, 2026

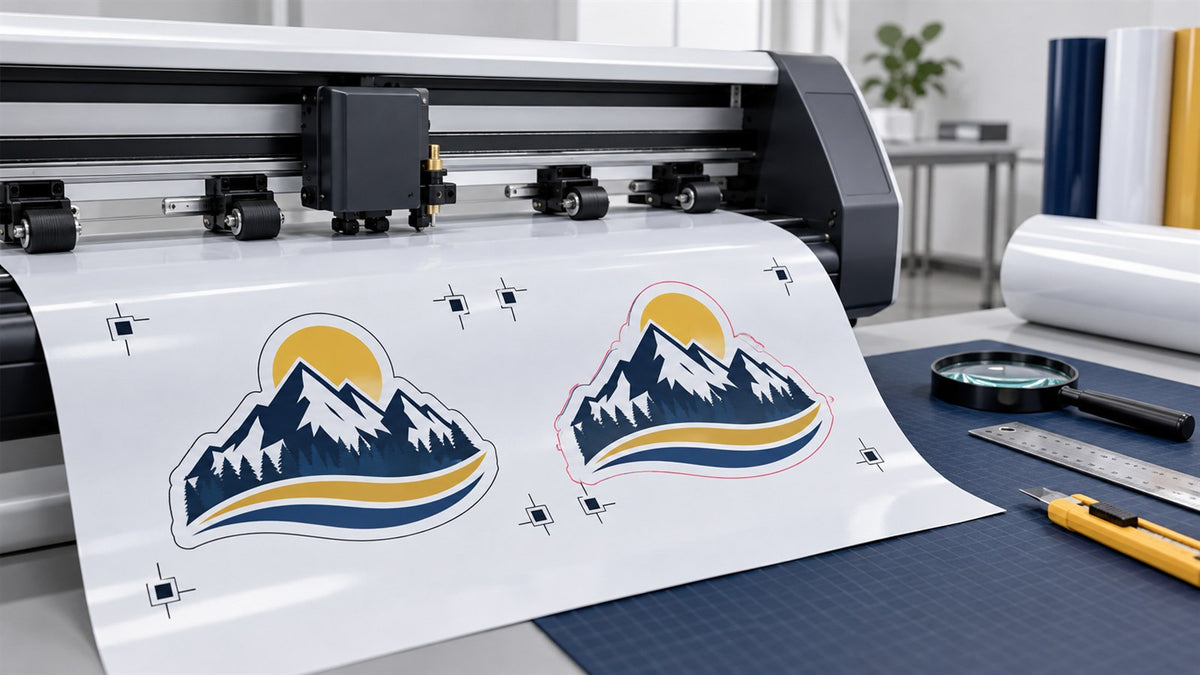

Correct and shifted contour-cut outlines compared beside registration marks

A contour cut that misses the printed outline is not always a simple X/Y offset problem. If the error grows, rotates, changes across the width, or appears only on small shapes, a global offset may make one area better while making another worse.

Begin by mapping the error across the complete sheet and separating optical registration from media movement and blade mechanics.

Preserve the evidence

Before recalibrating, mark and photograph:

leading and trailing edges;
left, center and right positions;
direction and amount of error;
crop-mark detection result;
media orientation;
printer, cutter, RIP, job and scale settings;
film, laminate, drying time and environmental conditions;
blade, holder, force, speed and offset.

Keep the failed sheet. A single decal removed from its position loses the pattern that identifies the cause.

Read the error pattern

Constant shift in the same direction

Likely areas include print/cut calibration, origin, job position, an incorrect cut file, scaling, or a consistent sensor offset.

Error increases from front to back

Investigate media-feed calibration, dimensional change after printing, long-job tracking, pinch-roller slip, take-up tension and insufficient registration references.

One side aligns and the other side does not

Check skewed loading, sheet squareness, diagonal lamination, unequal pinch pressure, roller contamination and crop-mark geometry.

Error changes direction around the sheet

Possible causes include rotation, nonuniform dimensional change, material buckling, an incorrect mark layout, or optical-reading problems.

Small shapes are distorted but large outlines align

Check blade extension, force, speed, blade offset, holder wear and whether the media moves during sharp direction changes.

Verify the file and RIP

The contour path should be a supported vector cut line with the exact spot-color name or workflow rule required by the RIP. Confirm that the job has not been resized, centered, rotated or nested differently after printing.

In Roland’s documented laminated-media workflow, enabling “Center on the Media” during the return cut can cause misalignment. That is a Roland-specific example of a wider rule: the cut job must preserve the same coordinate relationship to the printed crop marks.

Ensure bleed extends beyond the contour path. Bleed will not fix registration, but it prevents an acceptable tolerance from showing an unintended white edge.

Inspect crop marks

Crop marks must be complete, flat, clean, within the supported sensing area and sufficiently contrasted for the device. Common problems include:

laminate glare or texture over the marks;
marks hidden by tape or trimming;
ink dropout or contamination;
wrinkles, curl or buckling near a mark;
incorrect mark type for the cutter;
too little clear area around the marks;
lighting or sensor contamination where the equipment is sensitive.

Use the device’s mark-detection test before changing artwork.

Check material stability

Solvent prints can change dimension if cut before completing the required drying period. Excess tension during lamination can stretch one layer. Heat, humidity and tight winding can also change flatness and tracking.

Measure the printed distance between reference points before and after lamination. If the geometry changed, optical calibration alone cannot restore every location.

Reload squarely

Use the documented leading edge and orientation. Position pinch rollers only in approved zones and make sure the media is flat. Feed a short distance forward and backward to reveal skew before reading marks.

Long sheets magnify small loading errors. Where the system supports segmental or multiple crop marks, use them according to the RIP and cutter instructions.

Separate sensor calibration from blade drag

Run a pen plot or low-force test where supported. If the plotted path aligns but the blade cut does not, inspect cutting mechanics rather than optical registration.

Too much blade extension can act like a rudder. Excess force, incorrect offset, a worn holder or high speed can pull corners and small circles away from the commanded path. Establish the minimum clean cut through the face construction without deeply scoring the liner.

Calibration sequence

Use the printer/cutter manual for the exact order. A sound general sequence is:

Confirm a clean nozzle check and stable print.
Load the actual media construction correctly.
Verify media-feed or length calibration where applicable.
Perform print/cut alignment.
Perform crop-mark alignment for print–laminate–cut work.
Run a standard full-width test sheet.
Adjust only after identifying a repeatable error.

Do not calibrate on one thin unlaminated material and assume the result will transfer perfectly to every thick laminated construction.

Standard diagnostic target

Create one reusable file with rectangles, circles, small text and repeated decals at the four corners and center. Include a known bleed and measurement scale. Run it with the same print mode, laminate, loading and cut settings as production.

Record results rather than relying on memory. This distinguishes a machine trend from one damaged customer file.

Escalate with useful evidence

Provide support with the failed sheet layout, calibration prints, machine model and firmware, RIP version, photographs of marks, media/laminate construction, error measurements and the exact point where alignment changes. Avoid applying several undocumented offsets before support sees the original pattern.

For the preventive workflow, see How to Maintain Contour-Cut Accuracy After Lamination. For the complete production sequence, see Print-Cut vs. Print-Laminate-Cut.
