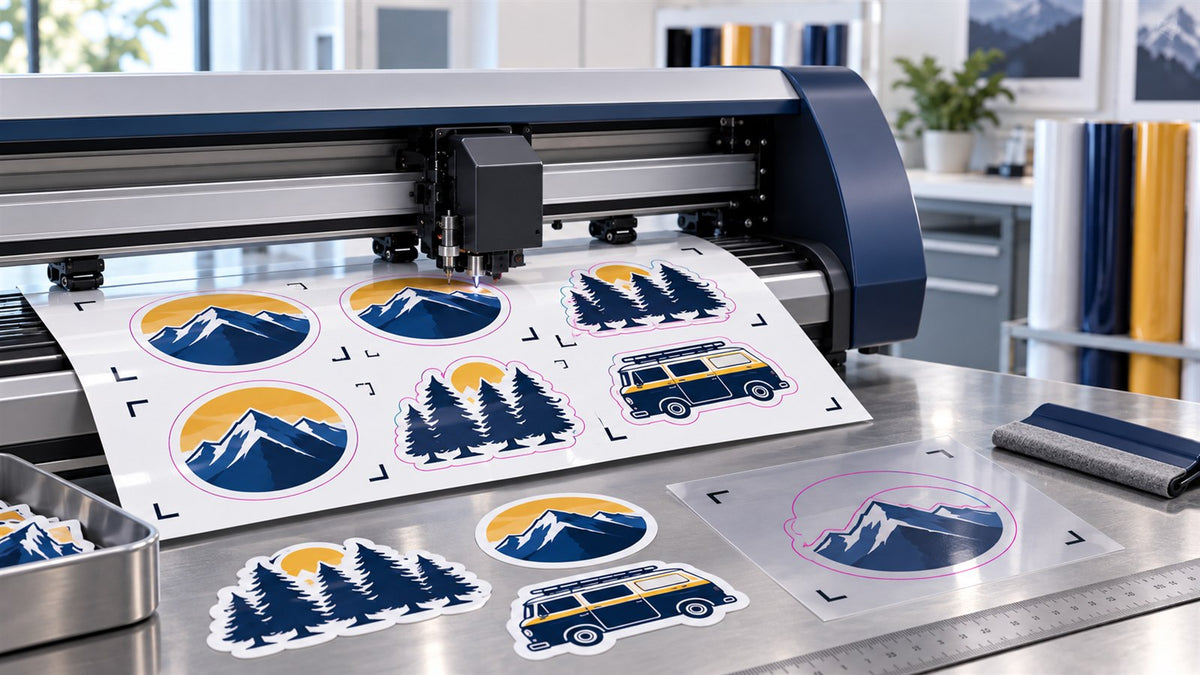

Good contour cutting begins in the artwork. A correctly built file gives the cutter one clean path, extends printed color beyond that path, and keeps important text and details safely inside it. Without those controls, even a mechanically accurate cutter can reveal white edges or trim into the design.
Bleed, safe area and cut path solve different problems. They should be planned together at final production size.
The short answer
- Cut path: the vector line the RIP interprets as the contour to cut.
- Bleed: printed artwork extending beyond the cut path to hide small print/cut variation.
- Safe area: space inside the cut path that protects text, borders and important details.
The exact bleed, path name, registration-mark system and acceptable tolerance depend on the RIP, cutter, media, laminate, size and workflow. Use the equipment procedure and run a production test.
Build one clean contour path
Create the cut path as a vector object. It should be:
- closed where a closed shape is intended;
- free from duplicate paths;
- free from stray points and tiny accidental segments;
- smooth enough for the cutter to follow without excessive blade movement;
- positioned on the correct layer and stacking order;
- assigned the exact spot-color or technical-path name required by the RIP.
Roland’s Print/Cut preparation guidance uses a specifically named CutContour spot color so VersaWorks recognizes the path as a cut instruction rather than printed artwork. Other RIPs may require different names or technical-color setup. Do not assume one vendor’s name is universal.
Add bleed outside the cut path
Bleed extends image color beyond the intended finished edge. If print-to-cut registration varies slightly, the viewer sees continued color rather than an unprinted white sliver.
The necessary amount depends on shape, size, equipment accuracy, lamination, media stability and production handling. Small stickers may use a modest bleed; large laminated graphics or unstable materials may need more tolerance.
Do not create bleed by adding a thick outline that changes the appearance of the edge. Extend, clone or properly enlarge the actual background artwork.
Protect important details with a safe area
Keep text, logos, thin borders, QR codes and important image details inside the cut path. A safe area does not print as a visible guide; it is an internal design boundary.
Increase the safe margin when:
- the object is large;
- the media may shrink or distort;
- lamination is included;
- the job is reloaded for cutting;
- the shape has narrow points or tight concave curves;
- close visual centering is important.
A narrow border following the contour makes small registration differences highly visible. Wider borders or borderless designs are more tolerant.
Use offsets deliberately
An offset path can create the contour outside the artwork, but inspect the result. Automatic offsets may create sharp spikes, self-intersections, unnecessary nodes or narrow bridges.
Simplify the path without changing the intended shape. Round extremely tight corners where appropriate, and remove details smaller than the blade, material and finished application can reliably reproduce.
Check spot-color behavior
The technical cut color must normally remain a named spot color through export. If it is converted to process CMYK or rasterized, the RIP may print the line rather than generate a cut path.
Before production:
- confirm the required path name and capitalization;
- confirm the swatch is a spot color;
- keep the contour as vector data;
- check whether overprint is required by the workflow;
- inspect the RIP preview to confirm the path appears in the cut layer, not the print layer.
Plan for lamination
Print–laminate–cut introduces more variables than immediate print-and-cut. Solvent prints may require outgassing; the laminate can add stiffness; the base film can change dimension; and the roll must be reloaded squarely.
Preserve registration marks according to the device workflow, avoid covering required sensor zones incorrectly, and use the supported marks for laminated or extended-length jobs. Do not move or rebuild marks manually unless the procedure explicitly permits it.
Preflight checklist
| Check | Pass condition |
|---|---|
| Final size | Document and placed artwork match production dimensions |
| Cut path | One intended path, closed and free from duplicates |
| Technical color | Correct named spot color preserved as vector |
| Bleed | Artwork extends beyond every exposed cut edge |
| Safe area | Text and critical details remain comfortably inside |
| Nodes | No accidental spikes, loops or excessive points |
| Registration marks | Correct system, clear sensor area and valid placement |
| RIP preview | Print and cut data appear in the correct channels |
Test before the full run
Run a representative sample using the production media, laminate, print mode and finishing sequence. Check:
- uniformity of the offset around the shape;
- whether the error changes across the width or length;
- small text and border appearance;
- corner lifting or tearing;
- blade depth and force;
- sensor recognition;
- reloading and take-up behavior.
If the error is consistently shifted in one direction, calibration or loading may be involved. If it grows or changes over distance, investigate scale, media feed, skew, distortion or lamination. Do not keep changing a single offset value when the error pattern is not constant.
Common file failures
- Cut path converted from spot to process color.
- Two overlapping contours causing double cutting.
- Raster cut line that the RIP cannot interpret.
- Bleed missing on one edge after artwork scaling.
- Text placed directly against the trim.
- Clipping mask hiding artwork that does not truly extend into bleed.
- Excessive nodes creating rough or slow cutting.
- White border used to disguise registration instead of correcting the workflow.
Bottom line
A production-ready Print/Cut file contains one clean vector contour, real image bleed outside the contour and a safe area inside it. Confirm the technical-color convention in the actual RIP, preview the separation, and test the full print–finish–cut sequence before volume production.
