Why Vinyl Bubbles, Shrinks or Lifts—and How to Prevent It

September 13, 2026

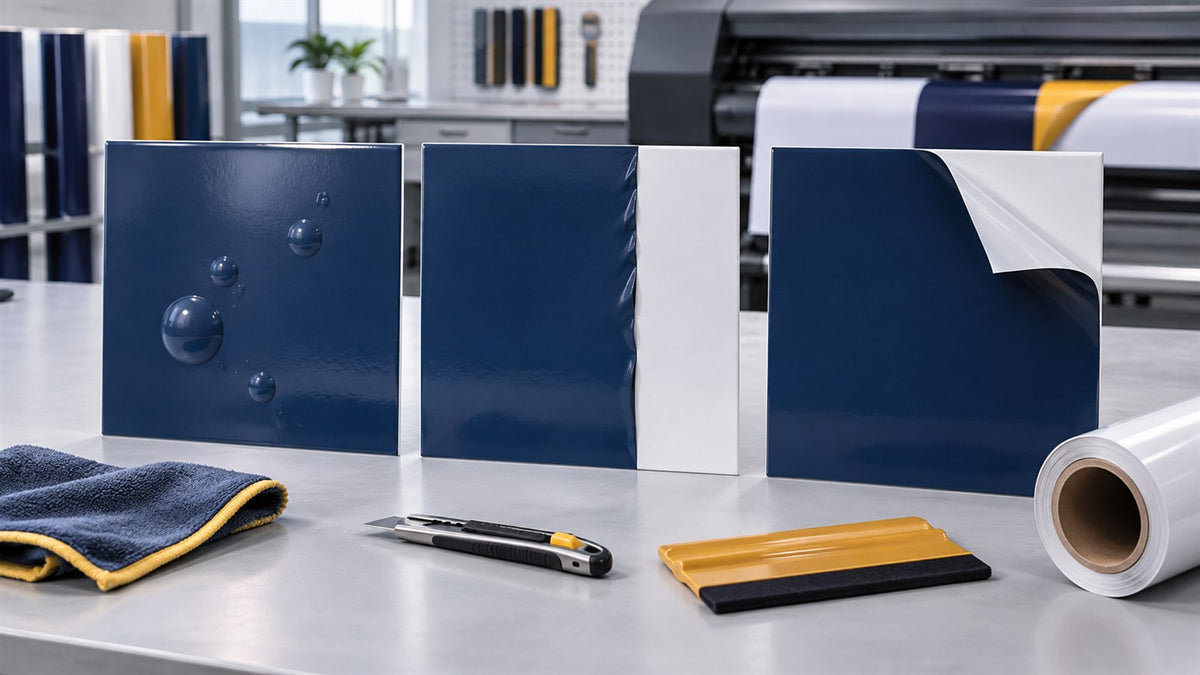

Vinyl samples showing bubbles edge shrinkage and lifting for troubleshooting

Bubbles, shrinkage, and lifted edges are visible symptoms, not single defects. The cause may begin during material selection, printing, drying, lamination, cutting, cleaning, or installation. Effective troubleshooting separates the symptom from the mechanism.

Bubbles: trapped air, moisture, or gas

Application bubbles commonly result from trapped air and incomplete adhesive contact. Use overlapping squeegee strokes, stable tension, and the product’s recommended dry or wet method. Air-egress adhesive can help air escape, but channels do not compensate for poor pressure or contamination.

Moisture under the graphic can also create bubbles or interfere with adhesion. Some plastics, paints, and composite panels may release gas after application. Fresh paint can continue curing beneath film.

For an isolated post-installation air bubble, 3M’s dry-application bulletin instructs installers to puncture at one end with a pin or approved air-release tool and press air toward the puncture—not to slash the film with a knife. Follow the film-specific procedure, especially on printed or laminated graphics.

Shrinkage: construction, heat, and ink

Calendered film generally retains more manufacturing stress than cast film. Using it in deep recesses or compound curves can create recovery stress. Excess stretching during installation adds more.

Solvent ink can temporarily soften or swell printable vinyl. ORAFOL warns that cutting or laminating insufficiently dried output can produce shrinkage, edge curl, and adhesive problems. Give prints the required open-air drying time and do not keep them tightly wound.

Heat should be controlled and measured. Heating makes vinyl easier to form, but overheating, stretching beyond the product’s limit, or failing to complete the specified post-heating process can produce later movement.

Edge lifting: inadequate adhesion or concentrated stress

3M identifies inadequate adhesion as the general cause of edge lift, including insufficient cleaning, incorrect film selection, poor edge finishing, or abrasion. Edges, seams, overlaps, rivets, and recesses are vulnerable because stress and exposure concentrate there.

Common causes include:

contaminated, textured, low-energy, or uncured surfaces;
application below the supported temperature;
insufficient squeegee pressure;
touching or contaminating exposed adhesive;
unsupported use on complex curves;
trapped solvent or mismatched laminate;
excessive stretch at edges or channels;
immediate severe service before adhesion develops;
repeated cleaning, abrasion, fuel, or chemical exposure.

A cause-based diagnostic sequence

Map the failure. Random bubbles suggest a different mechanism from uniform edge curl or lifting only inside recesses.
Record timing. Immediate failure points toward cleaning, pressure, temperature, or tack; delayed failure may involve stress, exposure, or substrate change.
Inspect both surfaces. Look for adhesive transfer, contamination, paint failure, moisture, and shrink gaps.
Verify the product system. Confirm film, adhesive, ink, profile, drying time, laminate, and supported geometry.
Review installation records. Surface temperature, cleaner, pressure, heating, and post-heating matter.
Reproduce on test panels. Change one variable at a time.

Prevention checklist

Choose film construction for the real surface geometry.
Test unknown paint, plastics, powder coat, and textured surfaces.
Clean with the manufacturer-approved method and use fresh towels.
Use the correct media profile and avoid excessive ink.
Allow solvent prints to outgas openly before cutting or laminating.
Pair base film and laminate correctly.
Apply within the supported temperature range.
Use firm, overlapping strokes and re-squeegee all edges.
Avoid unsupported stretching and complete specified post-heating.
Keep a retained sample and production record for important jobs.

Repair or replace?

Small isolated bubbles may be repairable. A lifted edge caused by continuing stress, contamination, or wrong product selection is likely to return. 3M notes that aggressive edge repairs can damage the substrate. Identify and remove the cause before choosing repair; replacement is often safer when the wrong film or widespread adhesion failure is involved.

Use product selection to reduce repeat failures

When failure is limited to flat general-sign work, compare the failed construction with the intended use of the 4mil Matte Grey-Back Air-Release Printable Vinyl. Air-release channels can reduce trapped application air, but they cannot correct contamination, insufficient pressure or incompatible surfaces.

For jobs requiring a polymeric base and improved dimensional stability, review the 3mil Polymeric Grey-Back Air-Free Vinyl. For temporary work, the 6mil Matte Removable White Printable Vinyl provides a removable catalog option, subject to surface testing and the stated removal conditions.

Do not respond to lifting by automatically choosing the most aggressive adhesive. First follow the Surface Preparation for Vinyl Installation checklist and verify drying, laminate pairing and surface geometry. Use a Printable Media Sample Roll to reproduce the failure with one variable changed at a time.
