An ICC profile is not a universal “better color” switch. It describes how a specific printer, ink set, media, print mode, and measurement condition reproduce color. Reliable output starts by treating that entire combination as one production condition.
The short answer
Use a profile built for the exact media family, printer, ink, resolution, pass count, and RIP settings whenever available. Calibrate the printer and confirm nozzle condition before judging the profile. If the media or print mode changes, the expected color response changes too.
What an ICC output profile does
An output profile maps device-independent color values into the printable gamut of a particular production condition. It helps the RIP decide how much cyan, magenta, yellow, black, and any additional inks to use so measured output tracks a defined color target as closely and consistently as the system allows.
The profile cannot fix clogged nozzles, contaminated media, wrong heater settings, unstable curing, excessive ink, head strikes, or a mismatched substrate preset. Mechanical and process stability come first.
Media preset, calibration and profile are different
- Media preset: controls physical and print parameters such as vacuum, heat, curing, feed, resolution, pass count, and ink restrictions.
- Calibration: brings a known printer condition back toward its established response.
- ICC profile: characterizes the calibrated condition for color conversion.
HP’s profiling guidance instructs operators to select the correct paper or media type, calibrate first, print a target, allow the target to stabilize, measure it, and calculate the profile for that printer, ink, and paper combination.
Why one profile cannot cover every vinyl
Gloss, matte, clear, white, cast, calendered, and specialty films differ in surface energy, whiteness, gloss, absorption, coating, and ink holdout. Even two white gloss vinyls can require different ink limits or curing settings. Clear film has no white reflective base, so standard CMYK output depends heavily on the substrate behind it.

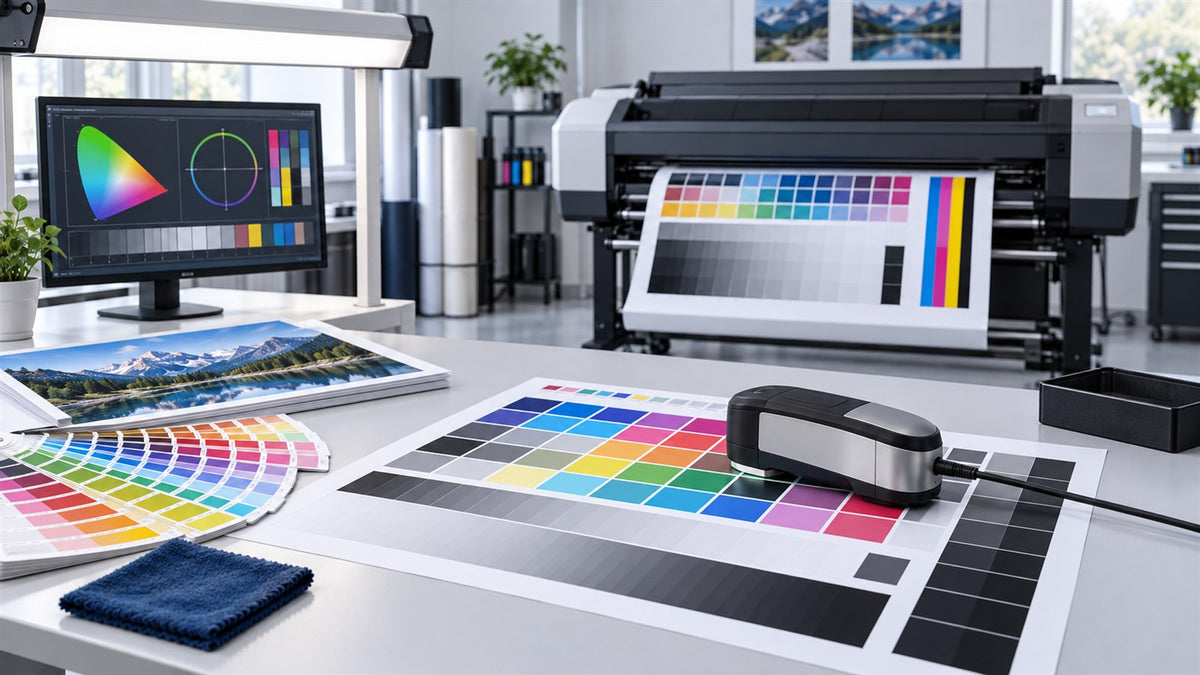

A practical workflow
- Stabilize the printer. Run nozzle checks, cleaning, alignment, and feed calibration as required.
- Load the correct media. Confirm printable side, storage condition, and surface cleanliness.
- Select the matching preset. Verify media category, resolution, pass count, heat or curing, and ink configuration.
- Calibrate. Restore the printer/media condition to its target response.
- Profile if necessary. Print and measure the profiling target only after the condition is stable.
- Install the profile correctly. In the RIP, associate it with the exact queue or media mode.
- Print a verification target. Check neutrals, gradients, brand colors, shadow detail, and total ink behavior.
- Record the condition. Save media lot, profile name, date, RIP version, mode, and finishing notes.
Input profiles and output profiles
An input or document profile describes the color space of the artwork, such as an RGB working space or a CMYK print condition. The output profile describes the printer condition. The RIP converts between them using the chosen rendering intent and color-management settings.
Roland’s VersaWorks guidance, for example, identifies GRACol.icc as a CMYK input profile used to simulate a CMYK printing environment. That is different from the media-specific output profile controlling a Roland printer on a particular substrate.
Rendering intents in plain language
| Intent | Typical use | Watch for |
|---|---|---|
| Relative colorimetric | Brand colors and in-gamut accuracy | Out-of-gamut colors clip to the nearest reproducible value |
| Perceptual | Photographs and broad-gamut images | Many colors may shift together to preserve relationships |
| Absolute colorimetric | Proofing another print condition | Simulates source paper color and is rarely a general production default |
| Saturation | Charts and presentation graphics | Prioritizes vividness over colorimetric accuracy |
Common mistakes
- Using a profile for a similar-looking but different media.
- Changing pass count or resolution without changing the profile.
- Profiling before nozzle, alignment, or feed problems are corrected.
- Applying color management twice in both the design application and RIP.
- Judging color before prints dry, cure, or stabilize.
- Expecting a profile to reproduce colors outside the printer/media gamut.
- Ignoring lighting conditions when approving samples.
When to rebuild or revalidate
Revalidate after major printer maintenance, ink changes, RIP or firmware changes, a significant media formulation change, or persistent measured drift. A new roll does not always require a new profile, but it should be checked against a known control print when color accuracy matters.
Bottom line
ICC color management works only when the physical print condition is stable and correctly identified. Treat the media preset, calibration, output profile, artwork profile, RIP settings, and viewing conditions as one controlled workflow. That approach improves repeatability far more than choosing profiles by filename or visual guesswork.
